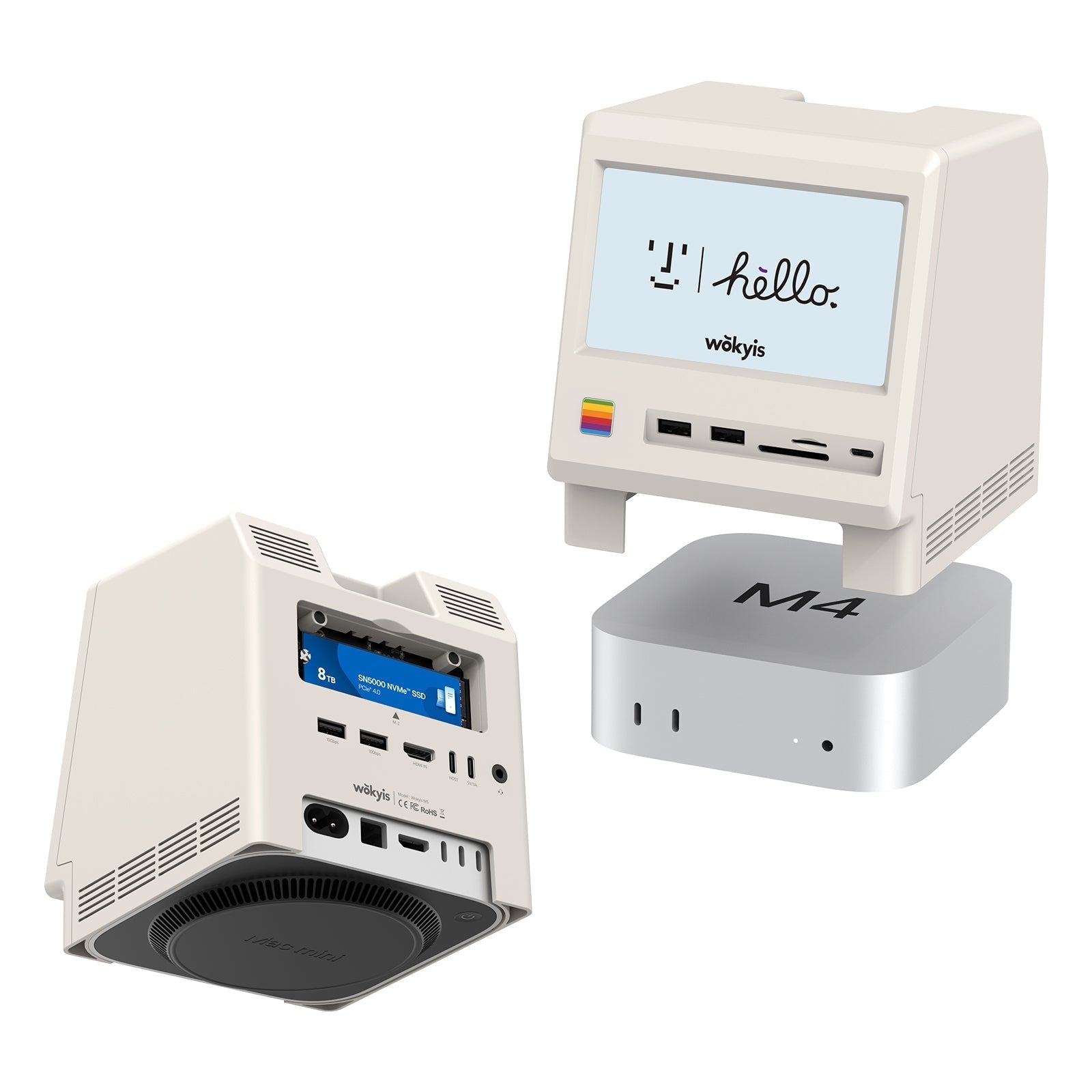

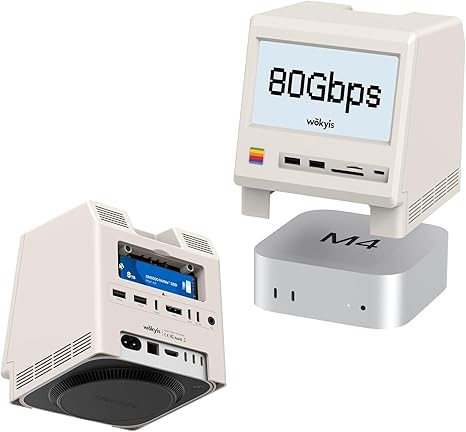

Retro Docking Station for Mac mini M4 with 5-inch Full HD Monitor and 10Gbps/80Gbps M.2 NVMe PCIe SSD Enclosure

10Gbps PRODUCT DESCRIPTION

Retro Docking Station for Mac mini M4 with 5-inch Full HD Monitor and 10Gbps M.2 NVMe PCIe SSD Enclosure|

About this item：

• It is compatible with Mac mini M4 and M4 Pro. It is also compatible with Mac mini M1/M2 chip series. other Macs and other Windows computers with Thunderbolt 5/4/3 ports or USB4 port.
• It is NOT compatible with computers that have Thunderbolt 2 ports or USB 3.2/3.0/2.0 ports.

• It is now available for purchase and is expected to ship in 3 days.

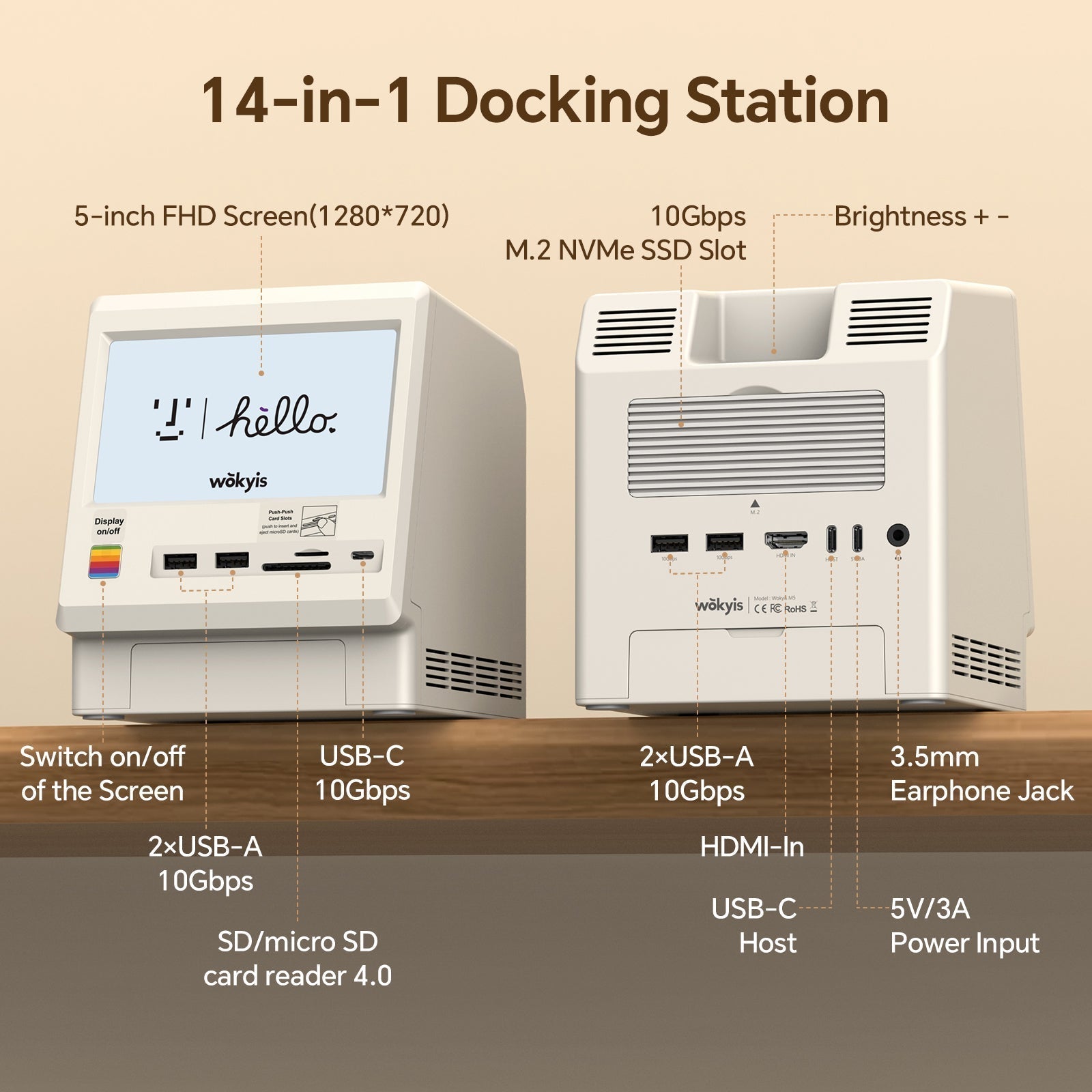

Technical Specifications：

• Power Button: switch on/off of the 5-inch screen
• 5-inch Monitor: full HD display. resolution up to 1280*720p. IPS

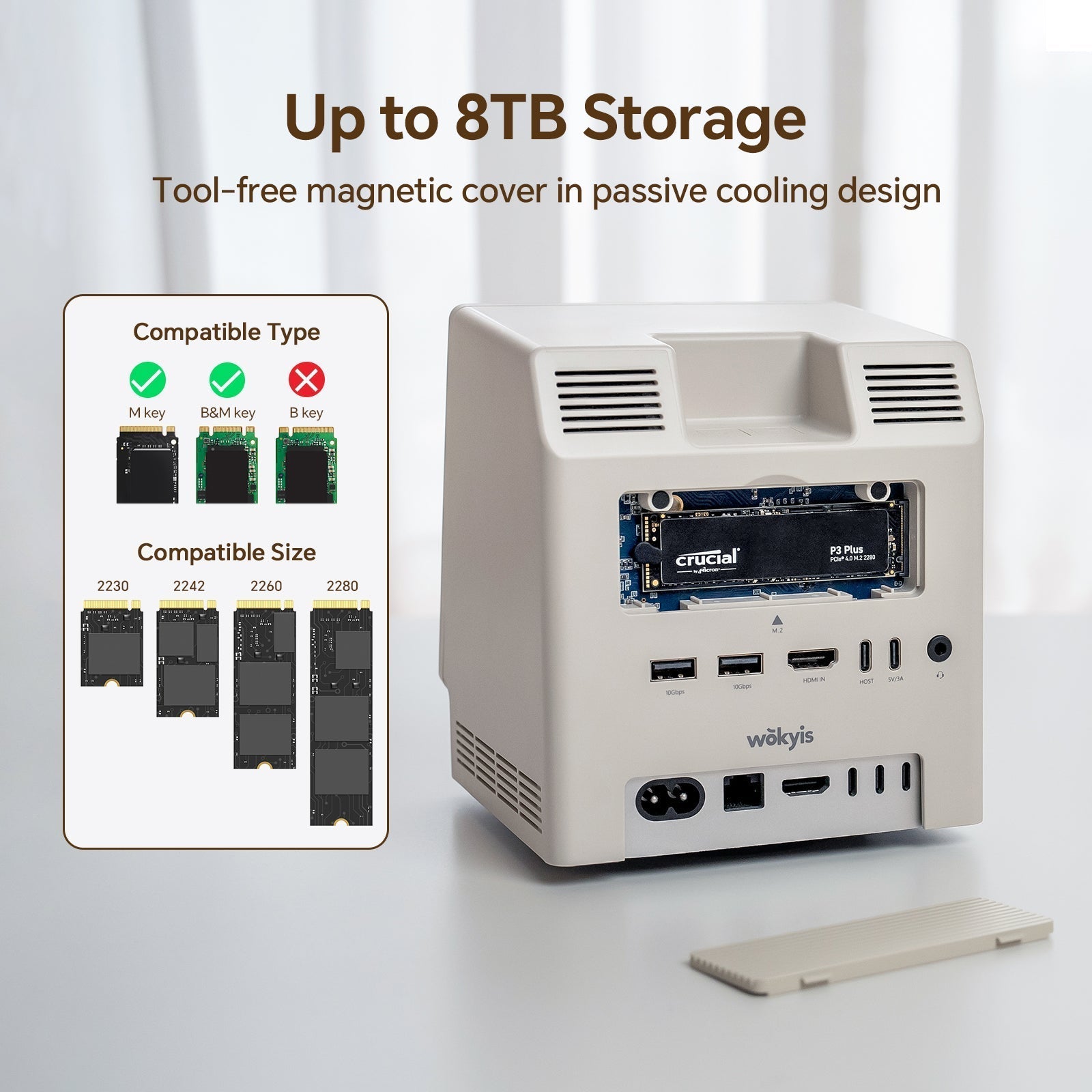

• M.2 SSD Slot: supports 2230/2242/2260/2280. NVMe. PCIe 4.0 and 5.0. capacity up to 8TB. speeds up to 10Gbps
• SD/micro Card Readers: SD4.0 UHS-ll 312MB/s. SD and microSD card readers can be used simultaneously
• 4x USB-A Ports: USB 3.2 Gen 2 10Gbps. power supply up to 5V/0.9Ah
• 1x USB-C Port: USB 3.2 Gen 2 10Gbps. power supply up to 5V/0.9Ah
• 1x USB-C Host: connect to Mac mini M4/M4 Pro
• 1x USB-C Port: connect to external power supply when needed. 5V/3A power in
• 1x Audio Port: 3.5mm earphone jack. USB 2.0. 8K-384K support 32bit input and output

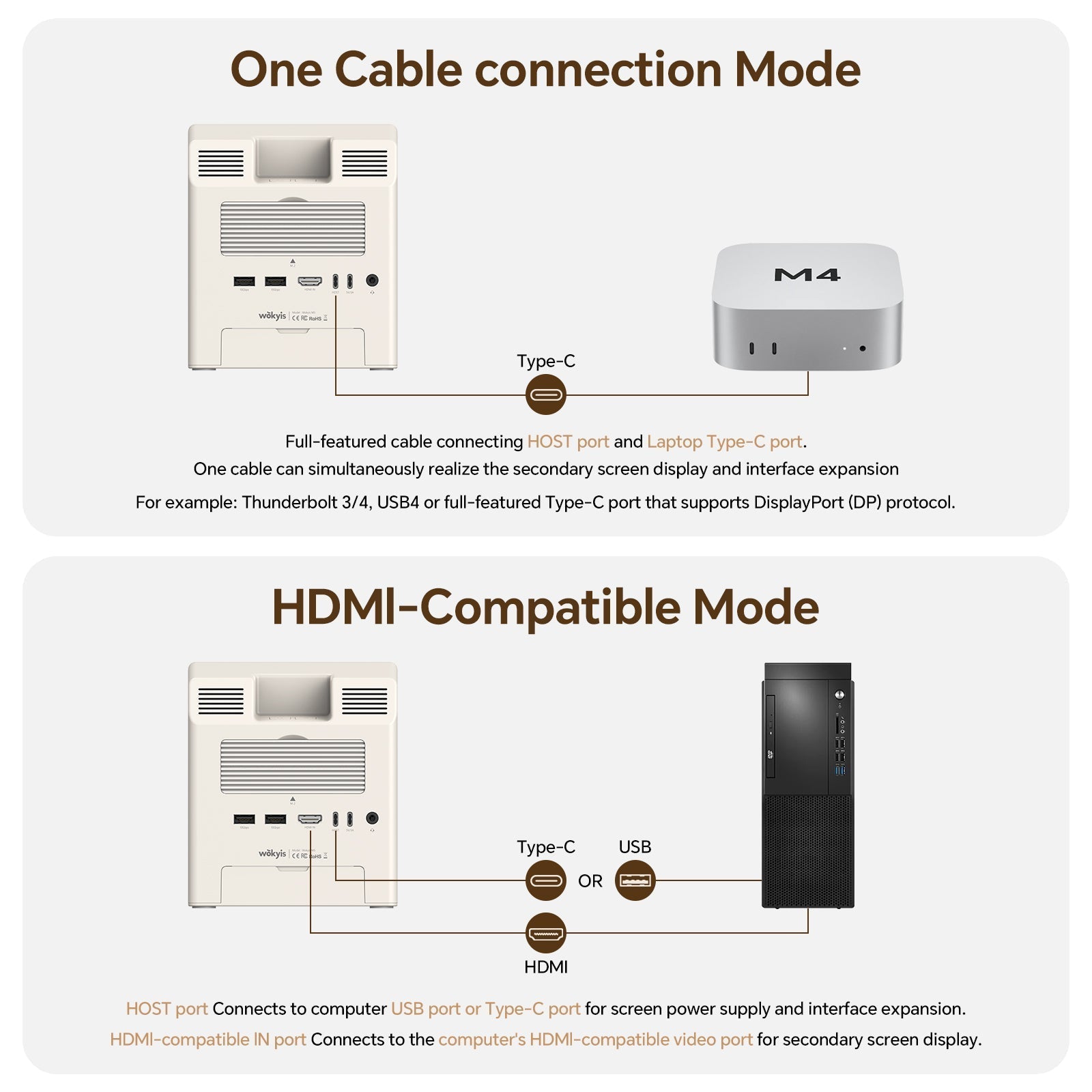

• 1x HDMI Port: HDMi-in only

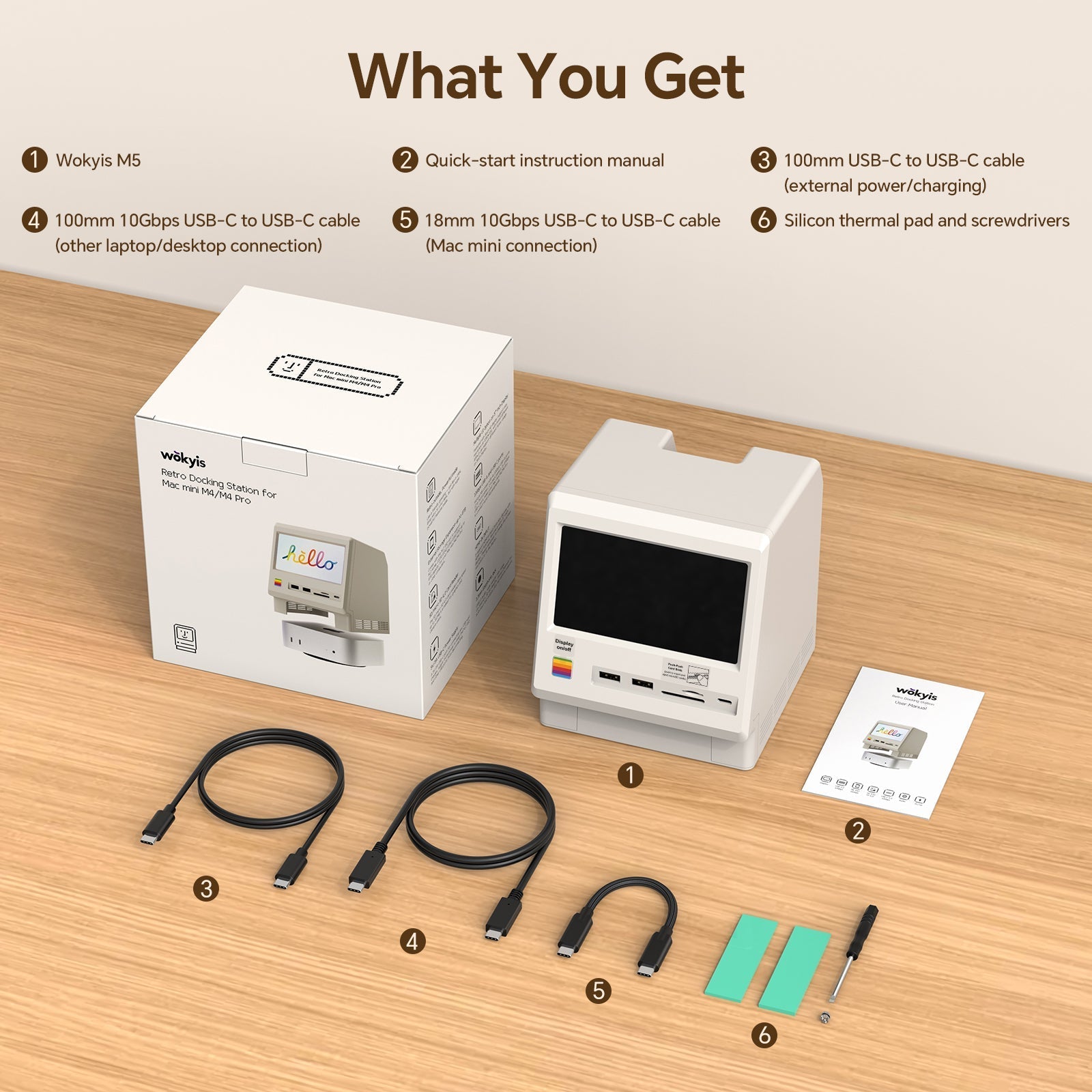

Accessories：

• 1x USB-C cable: connect to Mac mini M4/M4 Pro. 18mm. USB 3.2 Gen2 10Gbps
• 1x USB-C cable: connect to other Macs or Windows computers with Thunderbolt 5/4/3 ports or USB4 port. 1meter. USB 3.2 Gen2 10Gbps

• 1x USB-C cable: connect to external power supply when needed. 5V/3A power in

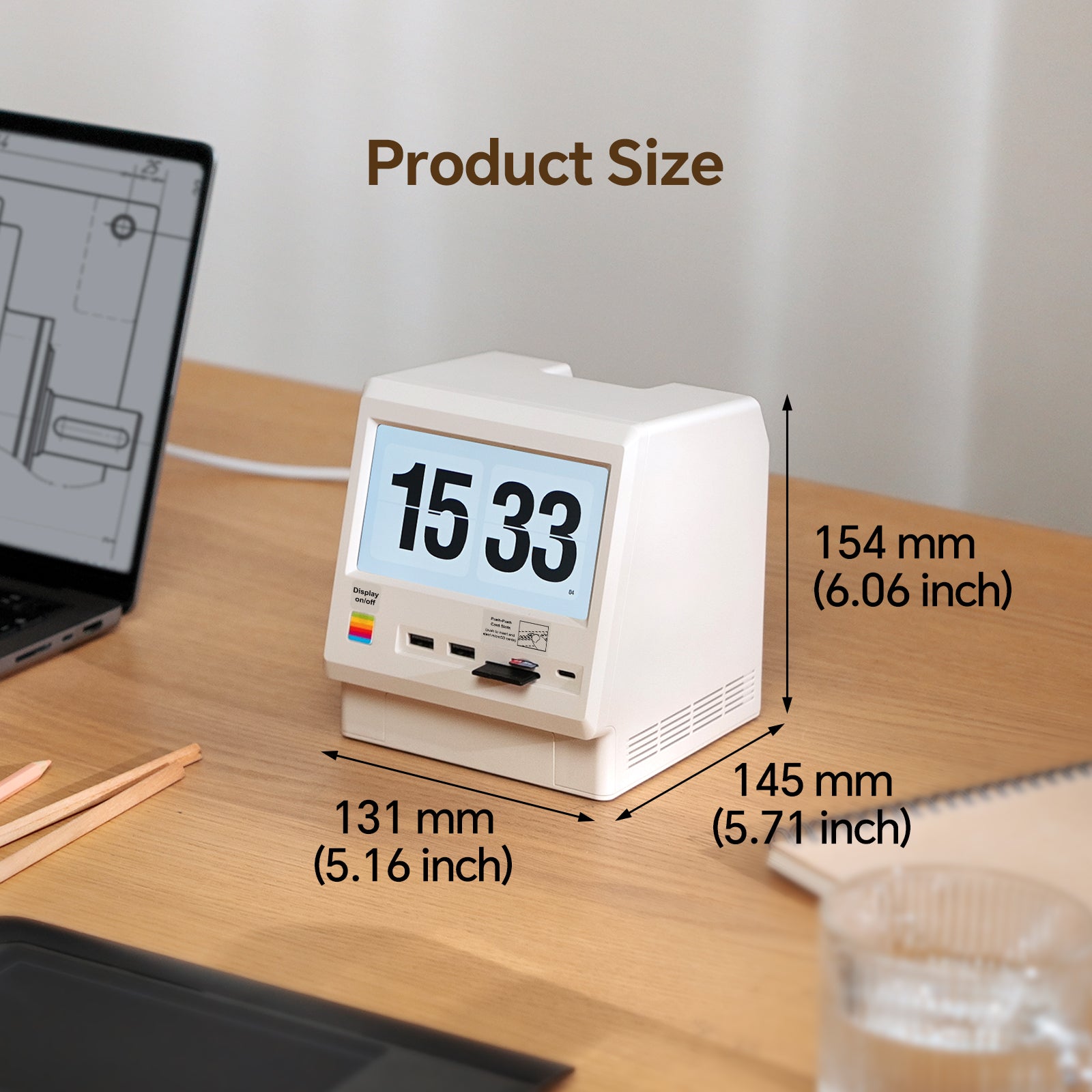

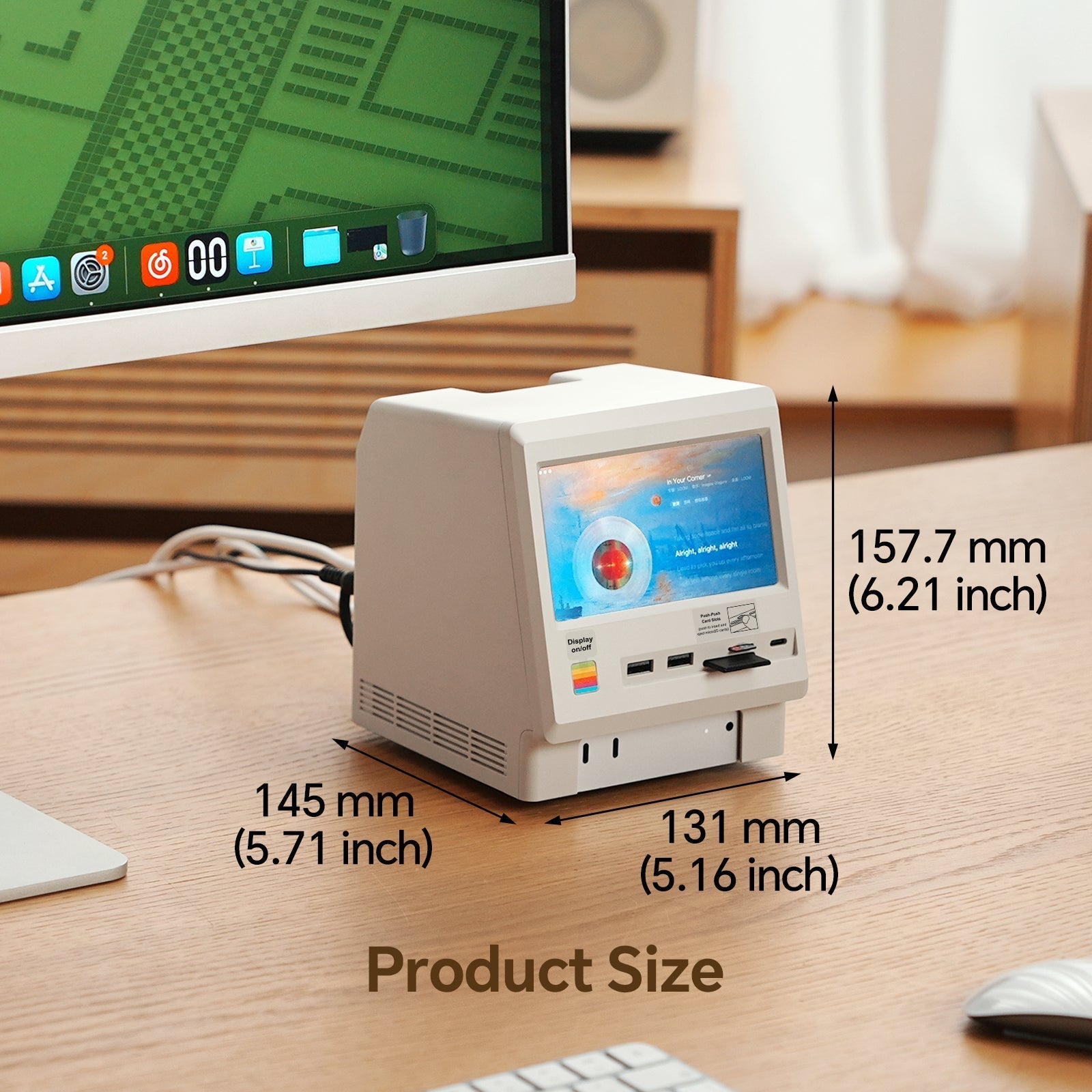

Dimensions:

• 145*131*154mm. 5.71*5.16*2.13inches

Weight:

• 510g. 1.12Ibs. 17.99oz

Materials:

• Plastic (main body)
• Aluminum (SSD cover)


Compatibility:

• Mac mini M4/M4 Pro. Mac mini M1/M2 chip series

• MacBook Air M4. MacBook Pro M5. MacBook Pro M4/M4 Pro/M4 Max
• Other Macs and Windows computers with Thunderbolt 5/4/3 ports or USB4 port


Recommended PCIe Gen 4 (4.0) and Gen 5 (5.0) NVMe SSD (to be updated):

• acer: Predator GM7/GM7000. FA100/FA200
• Crucial: T710/T705/T500. P510/P310. P5/P5 Plus. P3/P3 Plus. P2/P2 Plus
• Corsair: MP700 Elite/MP700 PRO. MP600 Elite/MP600 CORE XT/MP600 PRO NH
• Fury: Fury Renegade. Fury Renegade G5
• Lexar: NM1090 PRO. NM790/NM760/NM710. NQ790/NQ780/NQ760/NQ710
• Inland: TN450. TN470
• Kingston: NV3. NV2. NV1. DC1000B. KC3000. A400
• Move Speed: HB7450 1TB/2TB/4TB
• ORICO: e7400. O7000/OG7000. IG740PRO
• PNY: CS3250. CS2150. CS2241/CS2230. CS1030
• Samsung: 9100 Pro. 990 Pro/990 EVO/990 EVO Plus. 980 Pro/980. 970 Pro/970 EVO/970 EVO Plus/970
• Seagate: BarraCuda Q5/510. FireCuda 520/510. IronWolf 525. ZP1000GP3A1011/ZP2000GP3A1001
• SK Hynix: Platinum P51. Platinum P41. Gold P31
• Silicon Power: UD90. US75. A60
• TEAMGROUP: T-Force Z540. T-Force G50. MP44L. MP33/MP33 PRO. MS30
• Western Digital: Black SN8100/SN850X/SN850. Black SN7100/SN770/SN750. Blue SN5000. SN580/SN570/SN550. Green SN350. Red SN700

PRODUCT DESCRIPTION

Retro Docking Station for Mac mini M4 with 5-inch HD Monitor and 80Gbps M.2 NVMe PCIe SSD Enclosure

Tips and shipping：

• It is only compatible with the Mac mini M4/M4 Pro in terms of both functionality and size.
• It is also functionally compatible with the Mac mini M1/M2/M2 Pro, other Mac models and Windows computers with a Thunderbolt 5/4/3 or USB4 port, but NOT compatible in terms of size.
• It is NOT compatible with any computer that has a Thunderbolt 2 ports or USB 3.2/3.0/2.0 port in terms of neither functionality nor size.

• It is now available for purchase and is expect to ship within two days (excluding national holidays).

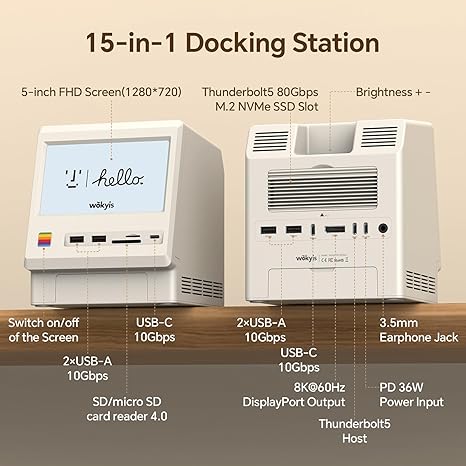

Technical Specifications：

• Power Button: switch on/off of the 5-inch screen
• 5-inch Screen: HD display, resolution up to 1280*720p, IPS

• M.2 SSD Slot: supports 2230/2242/2260/2280, NVMe, PCIe 4.0 and 5.0, capacity up to 8TB, speeds up to 80Gbps
• SD/micro Card Readers: SD4.0 UHS-ll 312MB/s, SD and microSD card readers can be used simultaneously
• 4x USB-A Ports: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
• 1x USB-C Port: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
• 1x USB-C Host: connect to Mac mini M4/M4 Pro
• 1x USB-C Port: connect to external power supply when needed, 36W (12V/3A)
• 1x Audio Port: 3.5mm earphone jack, USB 2.0, 8K-384K support 32bit input output
• 1x DisplayPor: 8K@60Hz video ouput


Accessories：

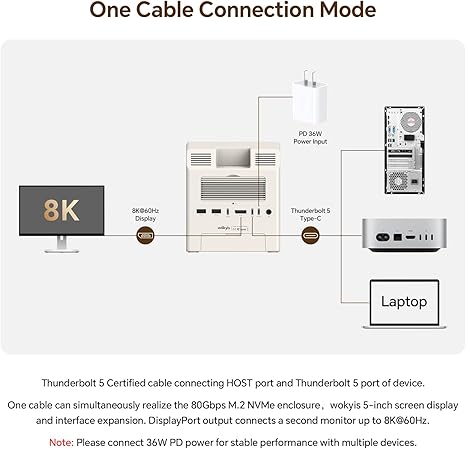

• 1x Thunderbolt 5 80Gbps cable: connect to Mac mini M4/M4 Pro, other Mac models and Windows computers with Thunderbolt 5/4/3 ports, 0.5 meter, Intel certified
• 1x USB-C cable: connect to external power supply when needed, 1 meter, 36W (12V/3A)

Dimensions:

• 145*131*154mm, 5.71*5.16*2.13inches

Weight:

• 510g, 1.12Ibs, 17.99oz

Materials:

• Plastic (main body)
• Aluminum (SSD protecive cover)

Compatibility:

• Mac mini M4/M4 Pro (both functionality and size are compatible)
• Mac mini M1/M2/M2 Pro (functionality is compatible, but size is not)

• Mac Studio M3 Ultra/M4 Max (functionality is compatible, but size is not)
• MacBook Air M4/M5, MacBook Pro M4/M4 Pro/M4 Max, MacBook Pro M5/M5 Pro/M5 Max (functionality is compatible, but size is not)
• Other Mac models and Windows computers with Thunderbolt 5/4/3 port or USB4 port (functionality is compatible, but size is not)


Recommended PCIe Gen4 (4.0) and Gen5 (5.0) NVMe SSD (to be updated):

• Crucial: T710/T705/T500, P510/P310, P5/P5 Plus, P3/P3 Plus, P2/P2 Plus
• Corsair: MP700 Elite/MP700 PRO, MP600 Elite/MP600 CORE XT/MP600 PRO NH
• Fury: Fury Renegade, Fury Renegade G5
• Lexar: NM1090 PRO, NM790/NM760/NM710, NQ790/NQ780//NQ710
• Kingston: NV3, NV2, NV1, DC1000B, KC3000
• Samsung: 9100 Pro, 990 Pro/990 EVO/990 EVO Plus, 980 Pro/980, 970 Pro/970 EVO/970 EVO Plus/970
• Seagate: BarraCuda Q5/510, FireCuda 520/510, IronWolf 525, ZP1000GP3A1011/ZP2000GP3A1001
• SK Hynix: Platinum P51, Platinum P41, Gold P31
• Silicon Power: UD90, US75, A60
• TEAMGROUP: T-Force Z540, T-Force G50, MP44L, MP33/MP33 PRO
• Western Digital: Black SN8100/SN850X/SN850, Black SN7100/SN770/SN750, Blue SN5000, SN580/SN570/SN550, Green SN350, Red SN700

80Gbps PRODUCT DESCRIPTION

Retro Docking Station for Mac mini M4 with 5-inch HD Monitor and 80Gbps M.2 NVMe PCIe SSD Enclosure

Tips and shipping：

• It is only compatible with the Mac mini M4/M4 Pro in terms of both functionality and size.
• It is also functionally compatible with the Mac mini M1/M2/M2 Pro, other Mac models and Windows computers with a Thunderbolt 5/4/3 or USB4 port, but NOT compatible in terms of size.
• It is NOT compatible with any computer that has a Thunderbolt 2 ports or USB 3.2/3.0/2.0 port in terms of neither functionality nor size.

• It is now available for purchase and is expect to ship within two days (excluding national holidays).

Technical Specifications：

• Power Button: switch on/off of the 5-inch screen
• 5-inch Screen: HD display, resolution up to 1280*720p, IPS

• M.2 SSD Slot: supports 2230/2242/2260/2280, NVMe, PCIe 4.0 and 5.0, capacity up to 8TB, speeds up to 80Gbps
• SD/micro Card Readers: SD4.0 UHS-ll 312MB/s, SD and microSD card readers can be used simultaneously
• 4x USB-A Ports: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
• 1x USB-C Port: USB 3.2 Gen 2 10Gbps, power supply up to 5V/0.9Ah
• 1x USB-C Host: connect to Mac mini M4/M4 Pro
• 1x USB-C Port: connect to external power supply when needed, 36W (12V/3A)
• 1x Audio Port: 3.5mm earphone jack, USB 2.0, 8K-384K support 32bit input output
• 1x DisplayPor: 8K@60Hz video ouput


Accessories：

• 1x Thunderbolt 5 80Gbps cable: connect to Mac mini M4/M4 Pro, other Mac models and Windows computers with Thunderbolt 5/4/3 ports, 0.5 meter, Intel certified
• 1x USB-C cable: connect to external power supply when needed, 1 meter, 36W (12V/3A)

Dimensions:

• 145*131*154mm, 5.71*5.16*2.13inches

Weight:

• 510g, 1.12Ibs, 17.99oz

Materials:

• Plastic (main body)
• Aluminum (SSD protecive cover)

Compatibility:

• Mac mini M4/M4 Pro (both functionality and size are compatible)
• Mac mini M1/M2/M2 Pro (functionality is compatible, but size is not)

• Mac Studio M3 Ultra/M4 Max (functionality is compatible, but size is not)
• MacBook Air M4/M5, MacBook Pro M4/M4 Pro/M4 Max, MacBook Pro M5/M5 Pro/M5 Max (functionality is compatible, but size is not)
• Other Mac models and Windows computers with Thunderbolt 5/4/3 port or USB4 port (functionality is compatible, but size is not)


Recommended PCIe Gen4 (4.0) and Gen5 (5.0) NVMe SSD (to be updated):

• Crucial: T710/T705/T500, P510/P310, P5/P5 Plus, P3/P3 Plus, P2/P2 Plus
• Corsair: MP700 Elite/MP700 PRO, MP600 Elite/MP600 CORE XT/MP600 PRO NH
• Fury: Fury Renegade, Fury Renegade G5
• Lexar: NM1090 PRO, NM790/NM760/NM710, NQ790/NQ780//NQ710
• Kingston: NV3, NV2, NV1, DC1000B, KC3000
• Samsung: 9100 Pro, 990 Pro/990 EVO/990 EVO Plus, 980 Pro/980, 970 Pro/970 EVO/970 EVO Plus/970
• Seagate: BarraCuda Q5/510, FireCuda 520/510, IronWolf 525, ZP1000GP3A1011/ZP2000GP3A1001
• SK Hynix: Platinum P51, Platinum P41, Gold P31
• Silicon Power: UD90, US75, A60
• TEAMGROUP: T-Force Z540, T-Force G50, MP44L, MP33/MP33 PRO
• Western Digital: Black SN8100/SN850X/SN850, Black SN7100/SN770/SN750, Blue SN5000, SN580/SN570/SN550, Green SN350, Red SN700
